Visualization and operation with myGEZE Connectivity
With myGEZE Connectivity, operators and facility managers can keep an eye on the status of their door, window and safety systems and operate them conveniently. Depending on the building, scope and requirements, two suitable solutions are available: myGEZE Viewer and myGEZE Visu.
Visualization solutions compared
| myGEZE Visu | myGEZE Viewer | |
|---|---|---|
| Use case | More extensive / individual applications | Standardized applications |
| Operation | Central visualization and operating interface | Local, browser-based |
| Engineering | Individually configurable | Low |
| Functions | Monitoring, control, alarms, workflows, permissions | Display and operate statuses |
| Objective | Range of functions & management | Simplicity |
| BMS | Alternative or addition to BMS | Parallel operation possible |
Functionality
How does myGEZE Visu work?

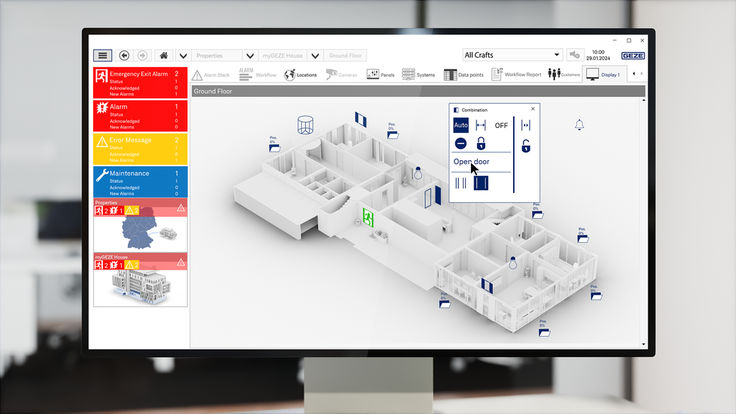

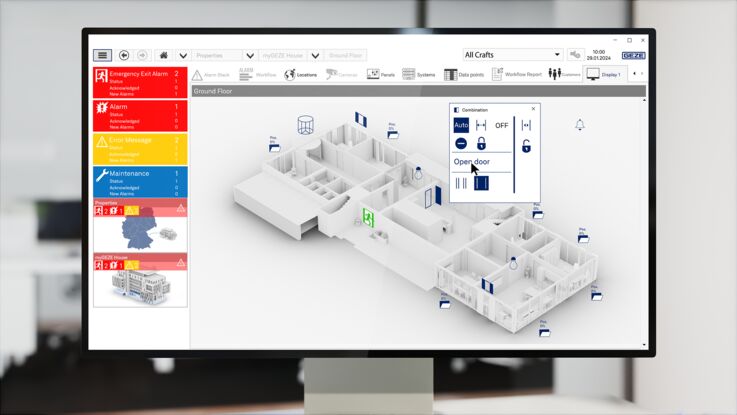

With myGEZE Visu, operators and facility managers can monitor and visualise buildings and control door, window and security systems individually. © GEZE GmbH
As an expansion to myGEZE Control, the myGEZE Visu visualisation system stands out, thanks to its modular and flexible authorisation concept. The software gives operators and facility managers a new way to monitor, visualise, control, and operate their door, window and safety systems.
myGEZE Visu detects faults, alarm situations and required maintenance quickly and reliably. Users of the innovative software benefit in terms of their work processes as well: Error messages from individual GEZE products can be forwarded via email notifications, if needed in conjunction with work orders to external entities. Visualisation via multi-monitor operating stations or video walls improves efficient control and monitoring. Workflow plans optimise processes and list details for the specific product. Finally, workflow stacks document current and completed processes, ensuring transparency. myGEZE Visu can be used as a software only, or in conjunction with industrial PC hardware, all depending on the user’s personal needs.
Integration with myGEZE Visu
Real-time monitoring
Interaction between myGEZE Control and myGEZE Visu
The myGEZE Visu software can be connected quickly and easily to myGEZE Control using the existing BACnet and/or OPC UA technology. To do this, the configurations can be imported directly from myGEZE Control into myGEZE Visu with few adjustments. The concept behind myGEZE Visu can be adapted flexibly and adjusted to any need, via a modular licensing module. This way, you can define the number of product systems to be connected, expand user administration, and configure the number of operating and multi-monitor stations, as well as video integration. If necessary, GEZE system partners offer further physical security management functions, such as video plug-ins, burglar alarm systems (BAS), fire alarm systems IFAS) or access control systems (ACCO).
The BACnet Building Controller (B-BC) Revision 14 offers the option to connect up to five controllers and a maximum of 1,000 devices, as well as six possible operating stations. Video integration can be selected as another system option, and supports different drivers.
Advantages
What advantages does myGEZE Visu offer operators and facility management?
- Use data from the entire GEZE product portfolio
- Visualisation, operation, and monitoring of doors, windows and safety technology
- Burglar alarm and smoke and heat extraction systems: Quick and flexible intervention possible in case of an alarm message, even remotely
- Can be used by any building operator, thanks to the open standard
- Better system availability, thanks to central monitoring
- Flexible and scalable solution that can be expanded in an affordable way if needed
myGEZE Viewer
How myGEZE Viewer works

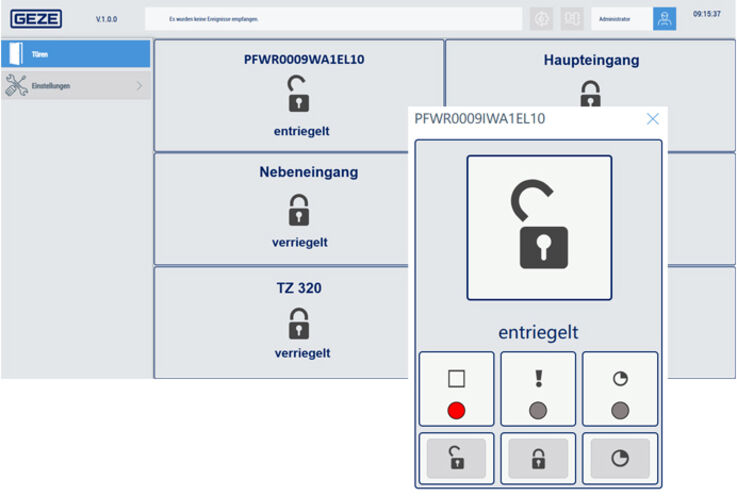

myGEZE Viewer offers a compact solution for browser-based display and operation of connected GEZE product systems. Device statuses are displayed graphically and can be monitored and operated locally directly via myGEZE Control. This makes myGEZE Viewer particularly suitable for standardized applications where no extensive visualization or hazard management solution is required. Existing building management systems can continue to be operated in parallel.
myGEZE Control and myGEZE Viewer – connectivity and operation in one system
myGEZE Control connects the attached GEZE product systems and provides their information centrally. myGEZE Viewer builds directly on this: the software application runs on myGEZE Control and makes the connected systems visible and operable via a browser-based interface.
For example, statuses of automatic doors and emergency exit systems can be monitored locally and functions can be operated – without the need to use additional higher-level visualization software. An existing building management system can be operated in parallel at the same time.
Benefits of myGEZE Viewer for operators and facility management
- Simple operation: Clear graphical display of the connected GEZE product systems and their current statuses.
- Directly available in the browser: The operating interface is browser-based and can be used without additional software installation.
- Low engineering effort: myGEZE Viewer is designed for standardized applications and enables local visualization and operation without complex individual visualization engineering.
- Scalable to requirements: Different licensing options make it possible to adapt to the required number of connected devices.
We offer you an all-round carefree service
Do you want to network your building intelligently? Put your trust in our expertise and let us work together to successfully implement your projects. Our GEZE experts will support you from planning and installation through to regular maintenance. Contact us for a customised offer for your project.
